MDI Tab Control

Fully implemented BCGControlBar Pro (MFC)

Not available BCGSuite (MFC)

Fully implemented BCGControlBar for .NET

BCGControlBar Library provides a simple and flexible mechanism for MDI document access: MDI Tabs. The tab control appearance can be fully customized.

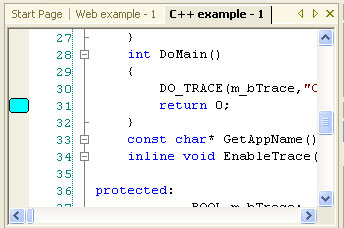

VS 2005-2022-like MDI Tabs

VS 2005-2022-like MDI Tabs

Underlined MDI Tabs

Underlined MDI Tabs

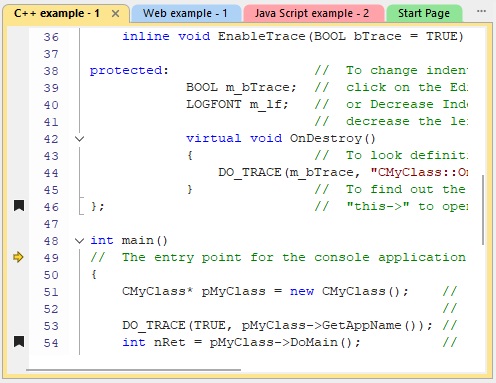

OneNote-style MDI Tabs

OneNote-style MDI Tabs

Sample code:

int CMainFrame::OnCreate(LPCREATESTRUCT lpCreateStruct)
{
...
    EnableMDITabs (TRUE, FALSE /* No icons */, CBCGPTabWnd::LOCATION_TOP,
            TRUE /* Has "Close" button */, CBCGPTabWnd::STYLE_3D_VS2005);
    GetMDITabs().EnableTabDocumentsMenu ();
...
}
